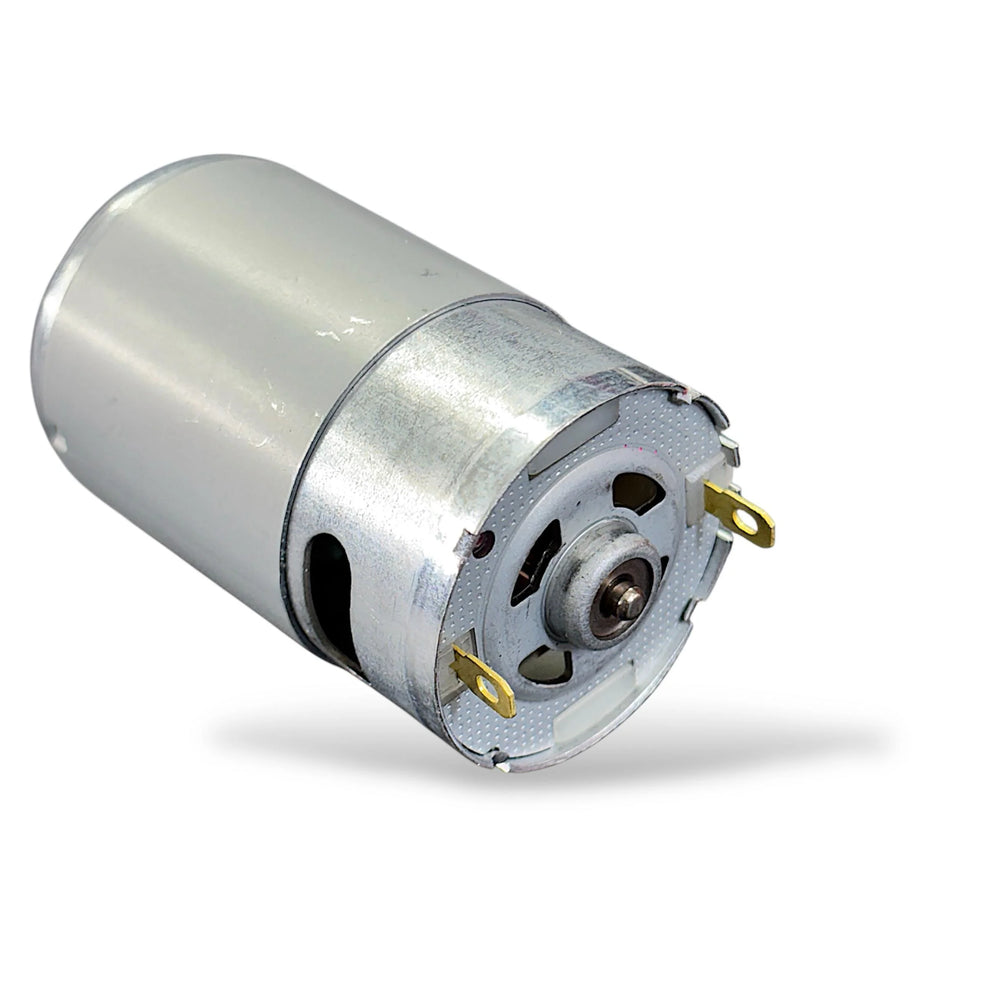

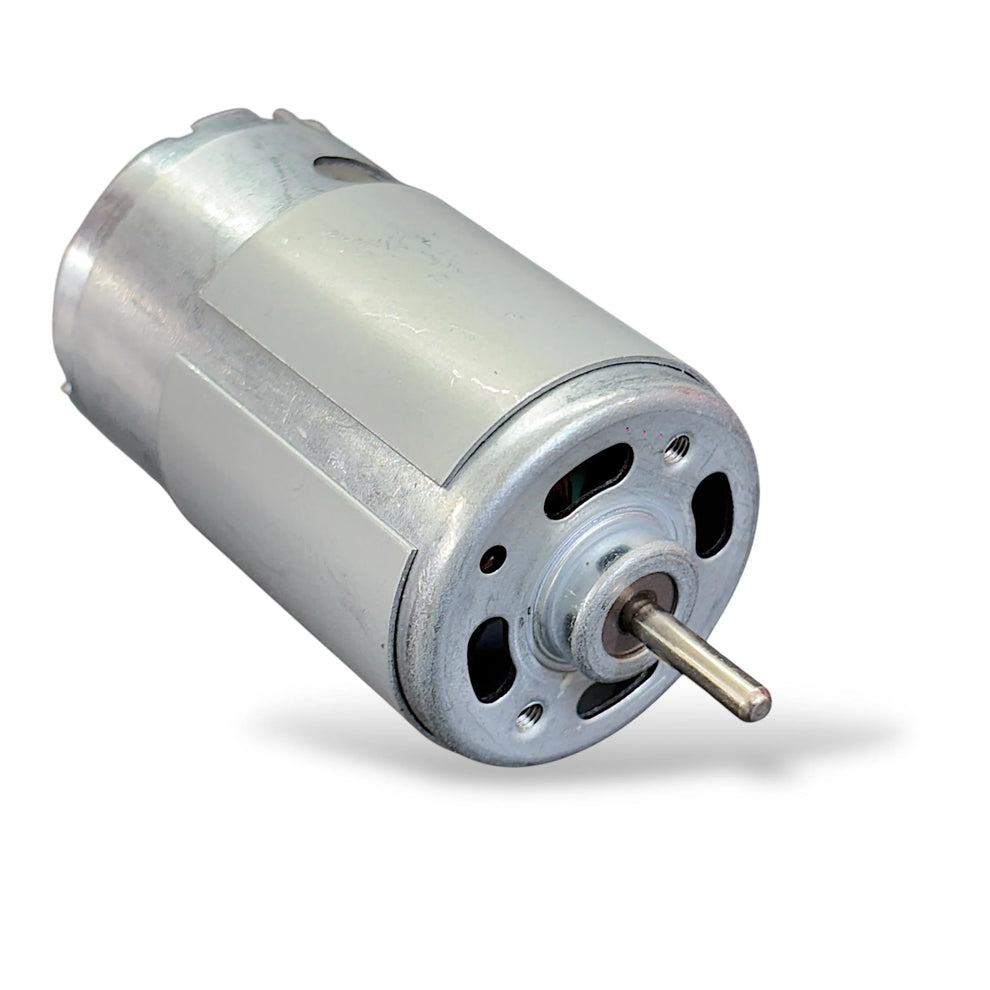

Specification

• Operating Voltage: 12V
• No-load Current: 0.6A
• Maximum Current: 2A
• Weight : 154g
• Motor Shaft Diameter: 3.17mm
• Mounting Screw Hole Diameter : 3mm
• Distance between Screw Holes: 25mm
• Diameter of the Motor: 36mm
• Length of the Motor (Body): 50mm
• Length of Shaft: 16mm

Description

A DC motor is a type of electric motor that operates using direct current (DC) power. The specifications of a DC motor can vary depending on its intended application and design. However, here are some common specifications that you may find for a DC motor:

1. Voltage Rating: The voltage rating indicates the amount of DC voltage required to operate the motor efficiently. It is typically given in volts (V), such as 9V to 12V.
2. Power Rating: The power rating of a DC motor specifies the maximum power it can deliver.
3. Speed: The rotational speed of a DC motor is measured in revolutions per minute (RPM). The speed can vary depending on the load and the applied voltage. Some DC motors also have adjustable speed control.
4. Torque: Torque is the rotational force produced by the motor. It is usually measured in Newton-meters (Nm) or ounce-inches (oz-in). The torque specification indicates the motor’s ability to generate rotational force to drive loads.
5. Efficiency: Efficiency refers to the motor’s ability to convert electrical power into mechanical power without significant losses. It is expressed as a percentage and represents the ratio of output power to input power.
6. Motor Type: DC motors can be categorized into various types, such as brushed DC motors and brushless DC motors. Each type has its own advantages and applications.
7. Construction: The construction of a DC motor can vary, including factors like the number of poles, winding type, and overall size. These factors influence the motor’s performance and application suitability.

 It’s important to note that the specific specifications of a DC motor can vary greatly depending on the manufacturer, model, and intended use. When selecting a DC motor for a particular application, it’s crucial to consider factors such as the required speed, torque, power supply, and any specific environmental or operational requirements.
