Description

Key Features

• Microcontroller: ATmega328P
• Operating Voltage: 5V
• Input Voltage (recommended): 5-9V
• Digital I/O Pins: 14
• Analog Input Pins: 6
• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA
• Flash Memory: 32 KB (ATmega328P)
• SRAM: 2 KB (ATmega328P)
• EEPROM: 1 KB (ATmega328P)
• Clock Speed: 16 MHz
• USB Interface: CH340G

Description

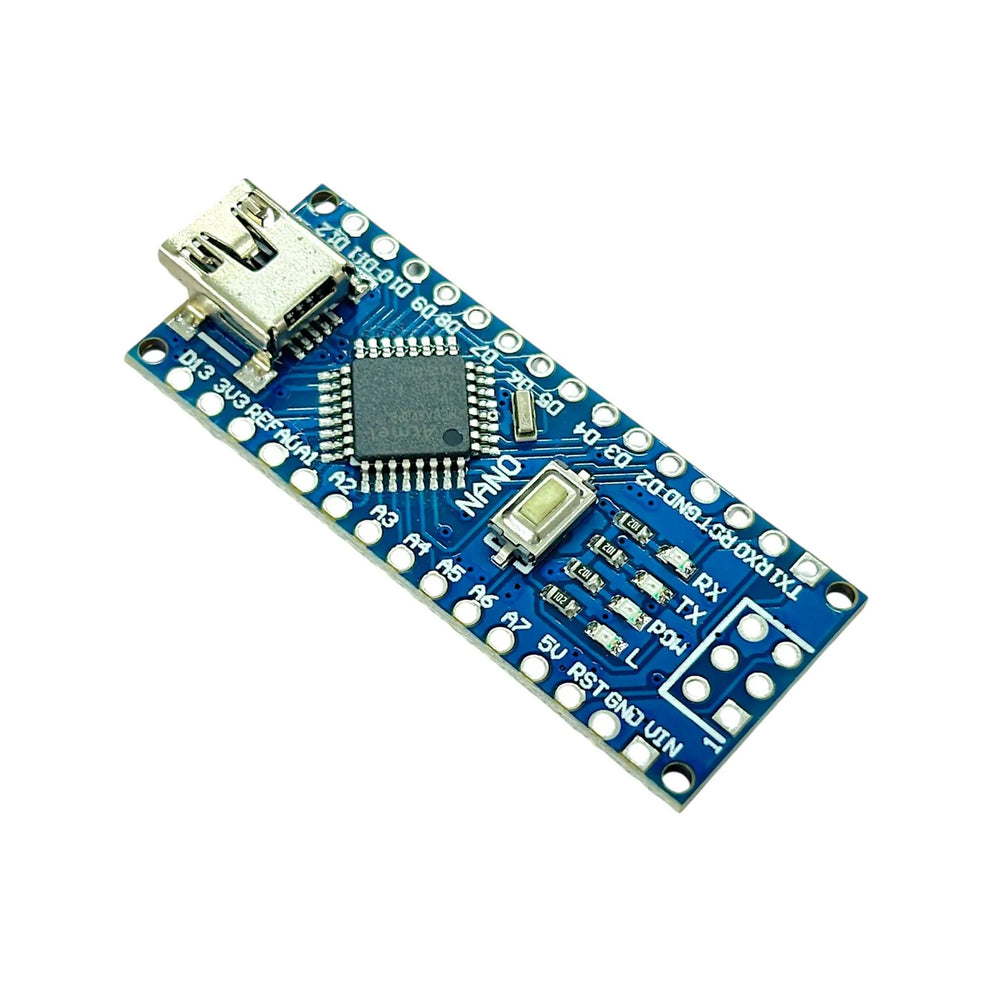

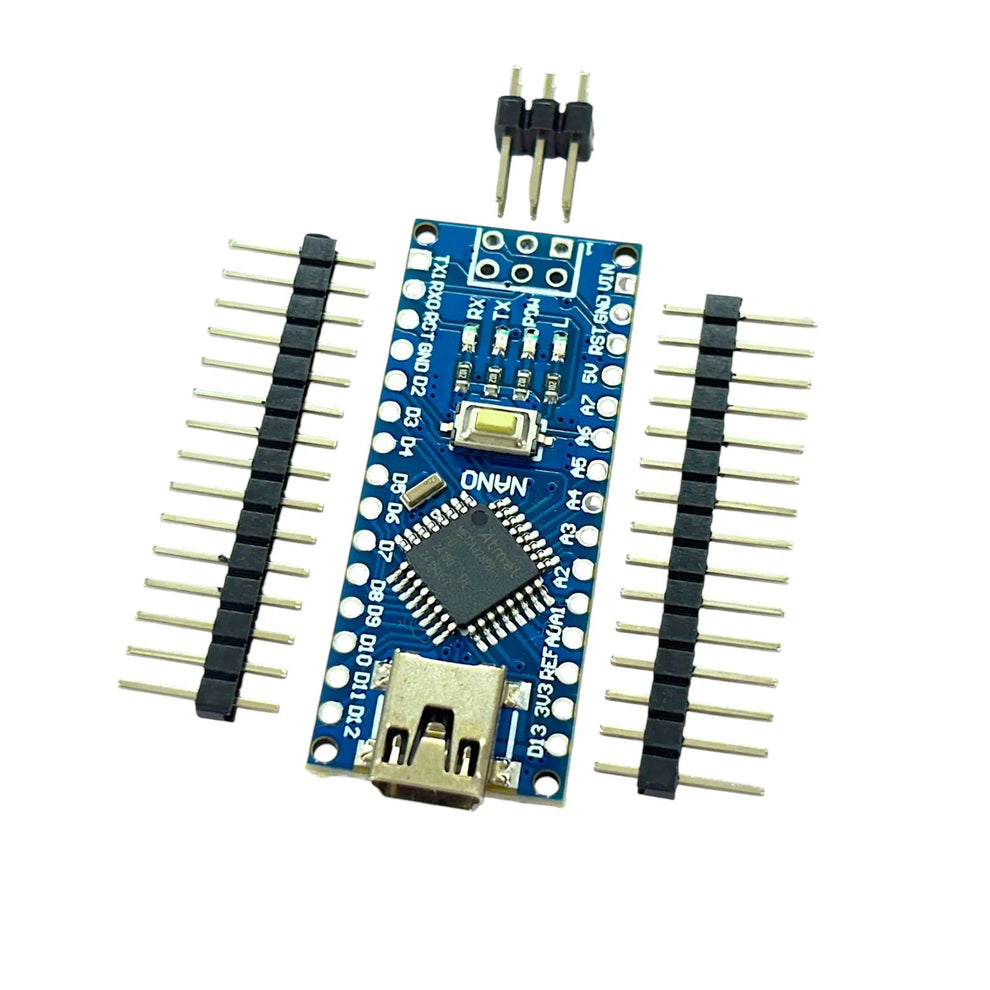

Nano Arduino V3 is a compact and powerful microcontroller board based on the ATmega328P chip. Operating at 5V and 16MHz, it features the CH340 USB Type-B interface for easy programming and communication. Fully compatible with the Arduino IDE, perfect for beginners, students, and DIY electronics enthusiasts.

The Arduino Nano board has 14 digital input/output pins, 8 analog inputs, a 16 MHz quartz crystal, a mini-USB connection, and an ICSP header. It can be powered by either a USB cable or an external power supply, and it can be programmed using the Arduino software.

The digital pins can be used for input or output, and they can be configured to work as PWM outputs. The analog inputs can be used to read voltages from sensors or other analog devices.

The Arduino Nano board is also compatible with a wide range of sensors, actuators, and other electronic components, making it ideal for a variety of projects, especially those that require a small form factor or need to be portable. Some examples of projects that can be built with the Arduino Nano include small robots, wearables, and home automation systems.
