Technical Specifications

• Motor Type: RS-775 DC Motor
• Shaft Type: D-Shaft (5mm)
• Rated Voltage: 12V DC
• Operating Voltage: 12V–24V DC
• No-Load Speed: Up to 6000–10000 RPM @12V
• No-Load Current: 0.3A – 0.6A
• Rated Current: Approx. 1.2A – 2A
• Stall Current: Up to 9A
• Rated Torque: High torque output
• Shaft Length: Approx. 16–20 mm
• Motor Diameter: ~42 mm
• Motor Length: ~67 mm
• Shaft length: 17mm
• Bearing Type: Original Ball Bearing
• Cooling: Built-in cooling fan
• Mounting Hole: M4 Screw Mount
• Application: Drill machine, robotics, DIY tools, automation

Product Description

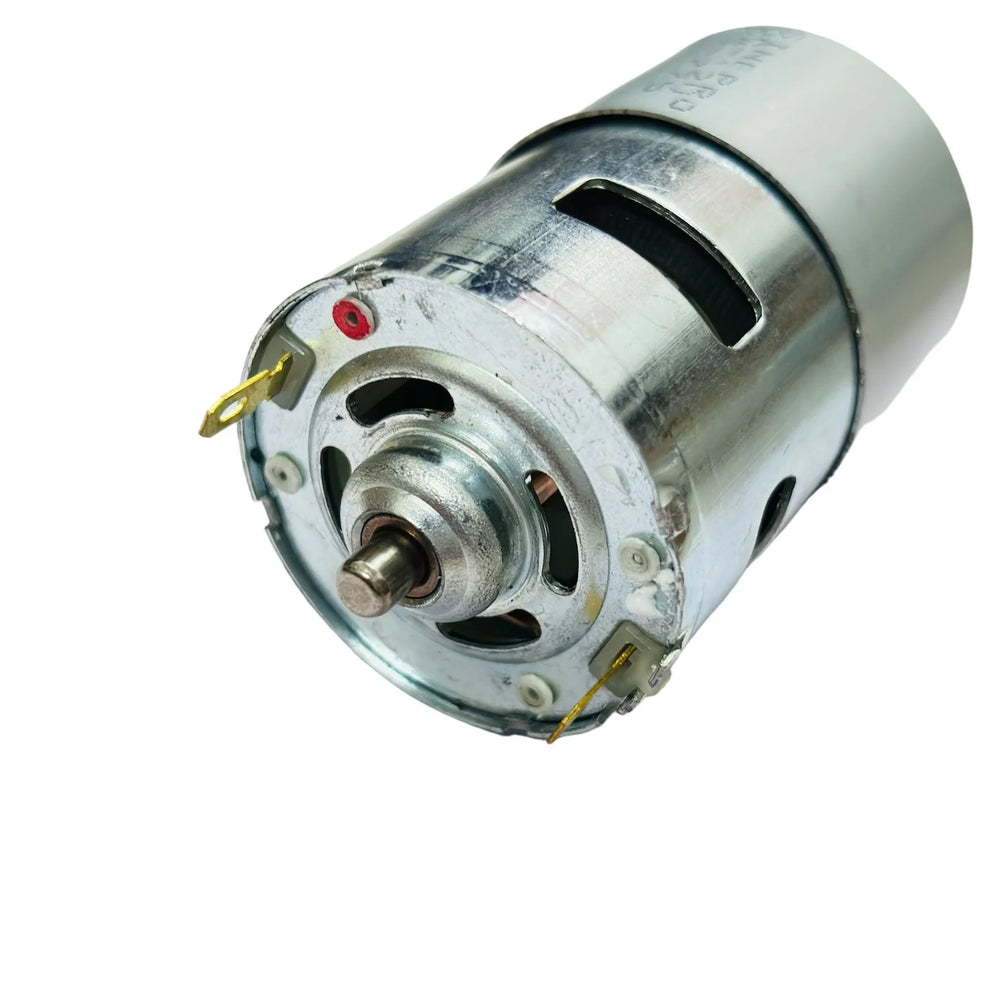

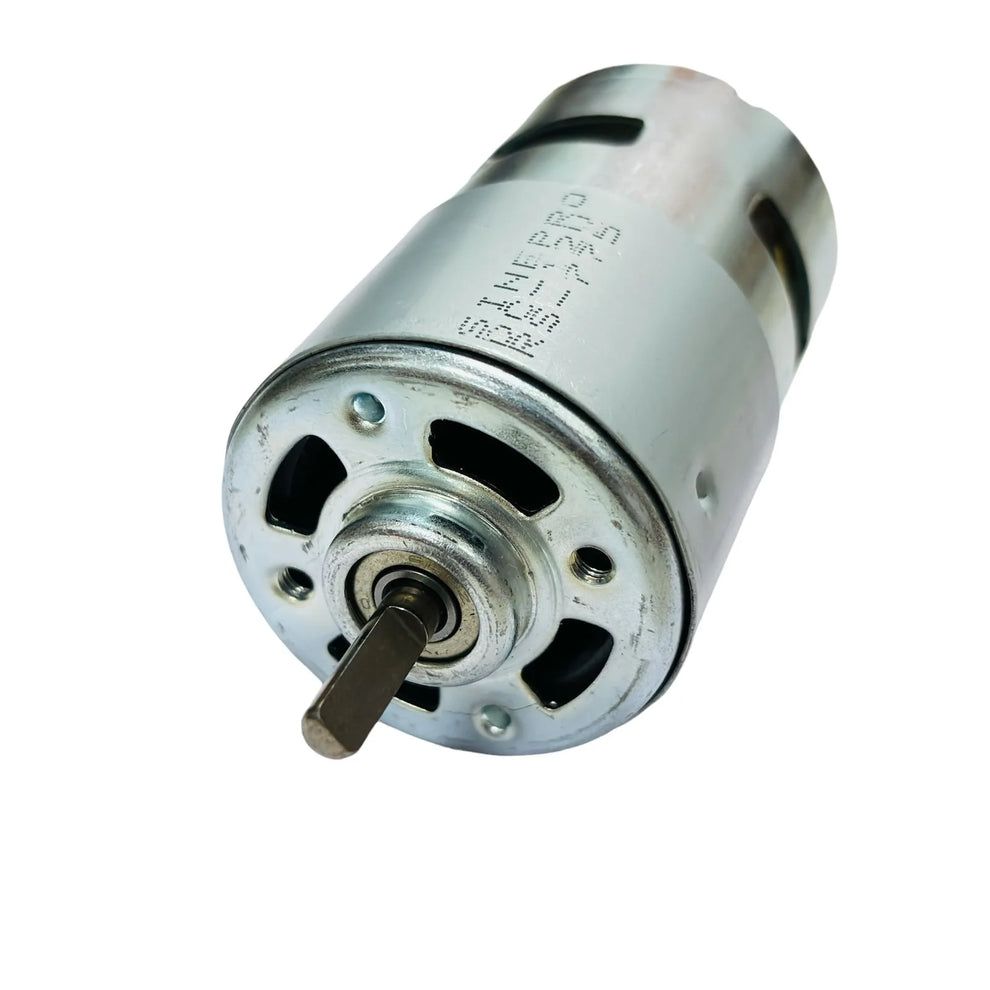

D-Shaft 775 DC 12V Motor with original bearing is a powerful high-torque motor ideal for robotics, DIY machines, and electric tools. It delivers high speed and strong performance with smooth operation using ball bearings. Perfect for drill machines, automation projects, science models, and heavy-duty DIY applications.
