Description

Technical Specifications

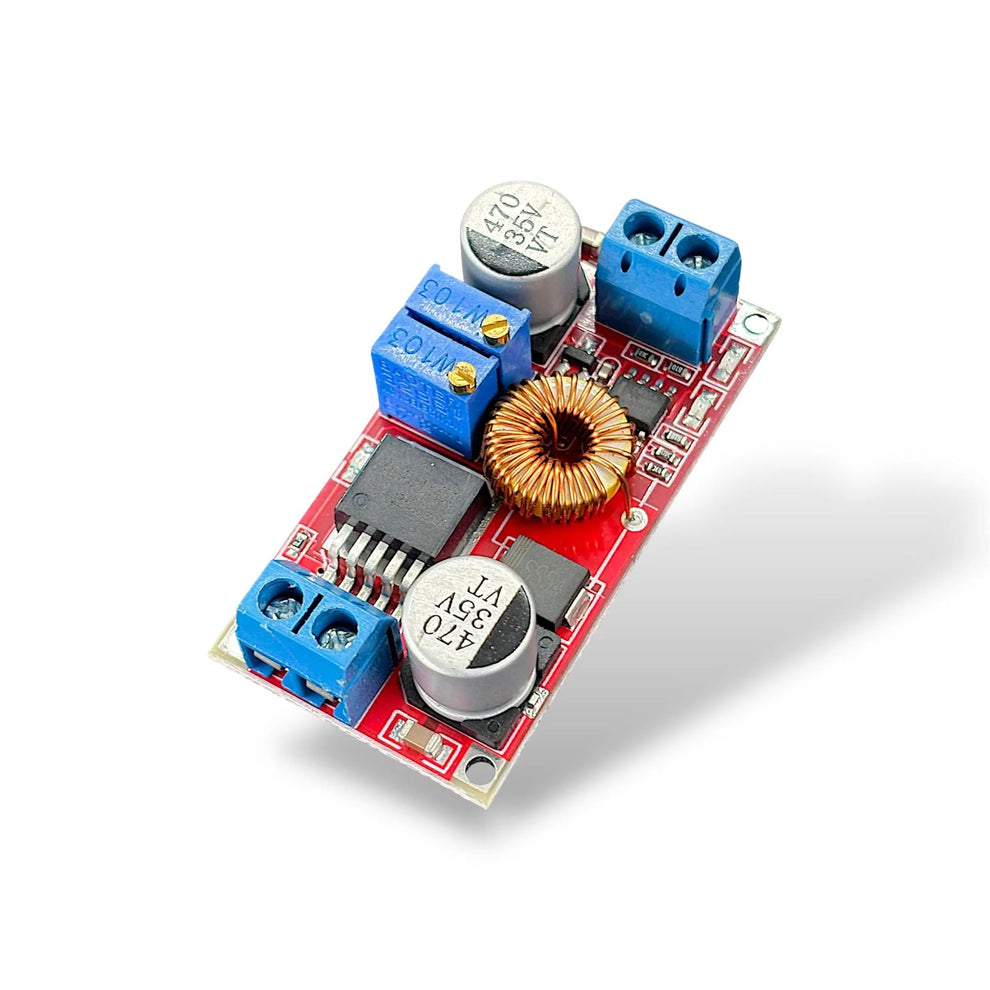

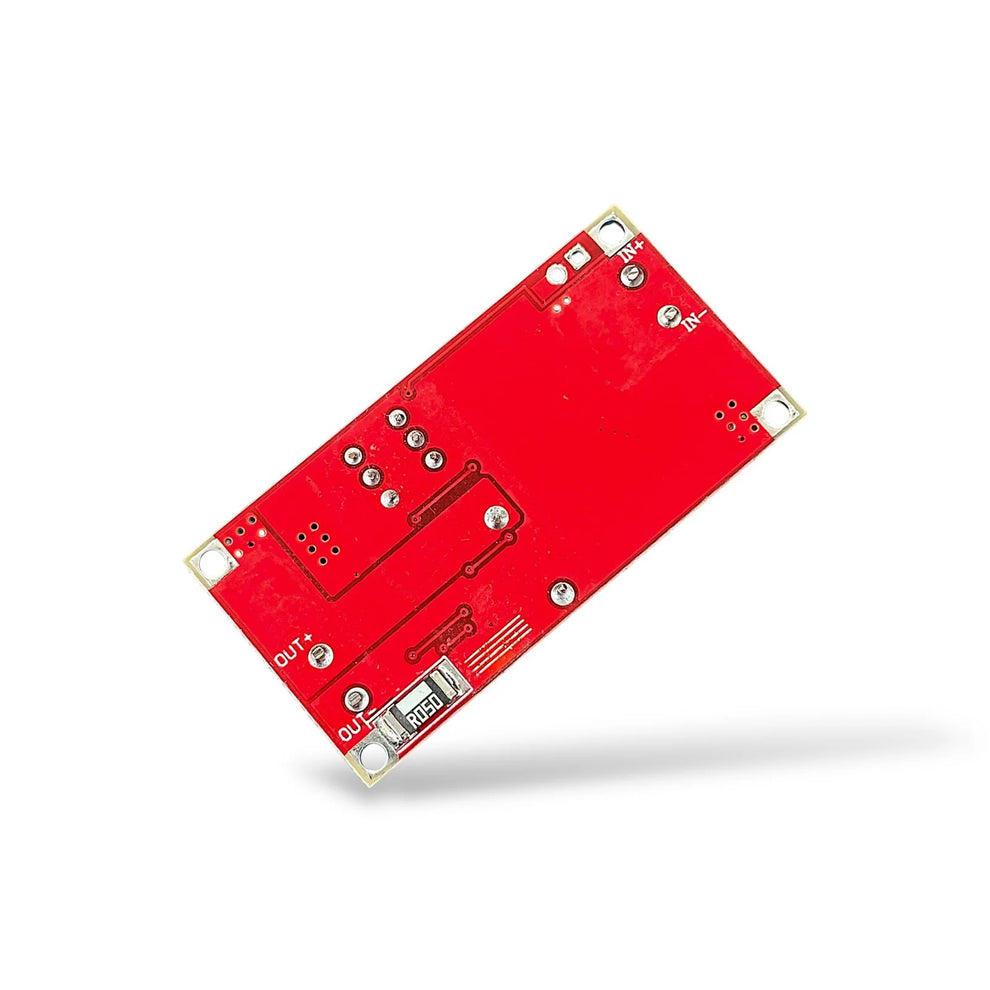

• Model: XL4015
• Module Type: DC-DC Buck (Step-Down) Converter
• Input Voltage Range: 5V – 36V DC
• Output Voltage Range: 1.25V – 32V DC (Adjustable)
• Maximum Output Current: 5A
• Constant Current Range: Adjustable (up to 5A)
• Output Power: Up to 75W (with proper cooling)
• Conversion Efficiency: Up to 96%
• Switching Frequency: ~180 kHz
• Control Method: Constant Voltage (CV) & Constant Current (CC)
• Protection Features:
  • Over-current protection
  • Short-circuit protection
  • Thermal protection (chip-level)
• Cooling: Large onboard heatsink
• Indicators: LED status indicators (CV/CC mode)
• Mounting: PCB mounting holes
• Operating Temperature: -40°C to +85°C
